Front Runner

Jeep Gladiator JT (2019-Current) Load Bed Load Bar Kit

Name: Jeep Gladiator JT (2019-Current) Load Bed Load Bar Kit
Brand: Front Runner
SKU: FTRKRJG003
Price: 384.0 USD
Availability: InStock

Product variants

Quantity

$384.00

Sale Sold out

Shipping calculated at checkout.

If you don’t currently need a complete Slimline II tray mounted in your bed, but still want off-road rated, durable cargo space for a bicycle, roof top tent, kayak, or other adventure accessories, a Front Runner Load Bar Kit is the solution. This kit is designed to work with the existing Jeep Gladiator JT factory bed rails and comes with a pair of 1425mm wide Front Runner Load Bars, 2 pairs of Front Runner Tall Load Bed Legs, and all the necessary hardware required to mount to the factory bed rails. The Front Runner Load Bar Kit features 22mm thick HD aluminum extrusions (slats) that are used in the Slimline II Roof Rack, which means that these load bars can be used as slats in a similar width Slimline II Roof Rack. Additionally, the sliding nut t-slots on the slats allow for unlimited and ultra-secure mounting positions, and accessories and equipment can be quickly removed as well.

Specifications

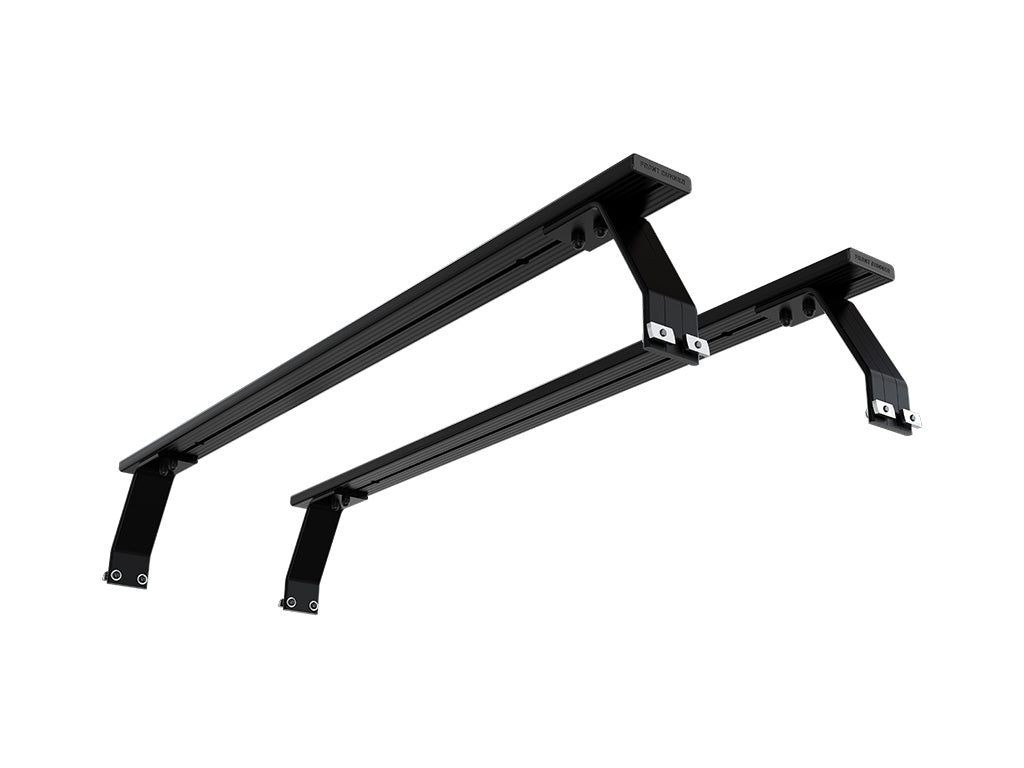

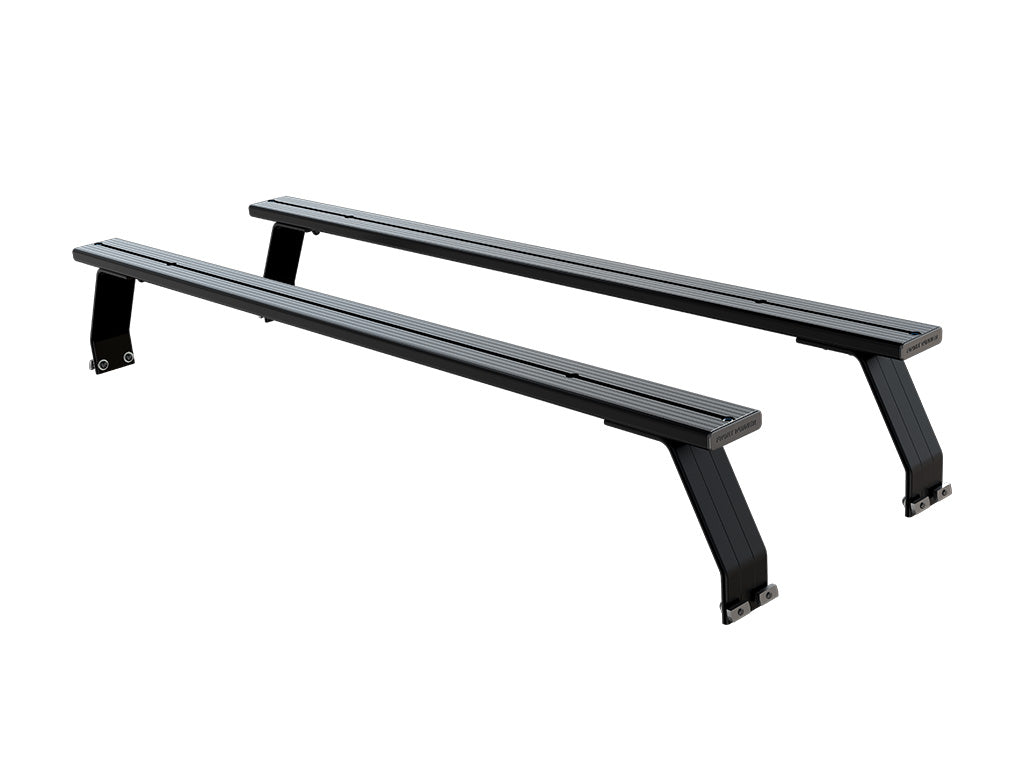

Consisting of:
2x LASS026 - Universal Load Bed Leg / Tall (Pair)
1x LBSK016 - Roof Load Bar Pair 1425mm(W)
1x RRAC901 - Load Bed Nut Kit- Toyota Tacoma 2004+/Tundra 2007+

Material Used: Black epoxy powder - coated T6 aluminium

Approximate Installed Weight: 7.57kg (16.69lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 200mm (8'')
Length: 1530mm (60'')
Height: 130mm (5'')
Shipping Weight: 8kg (18lbs)
