Front Runner

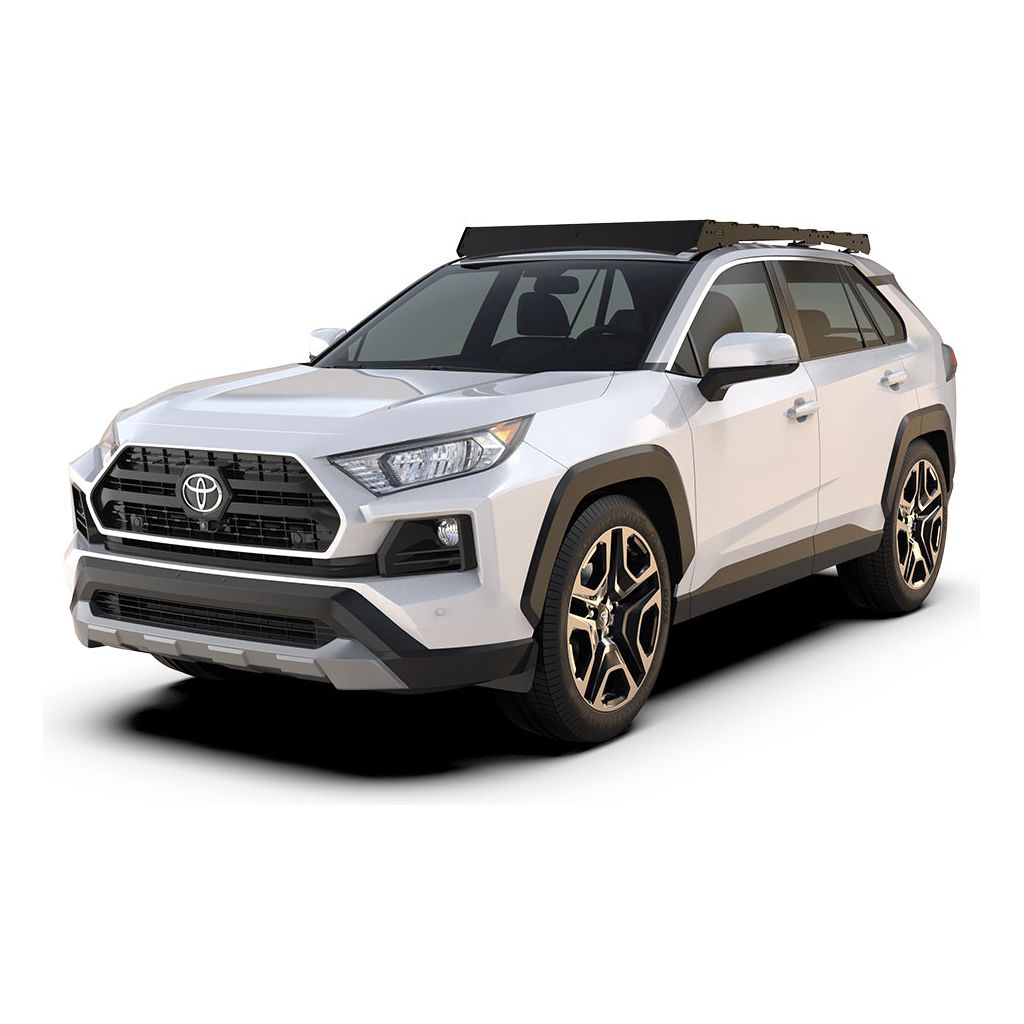

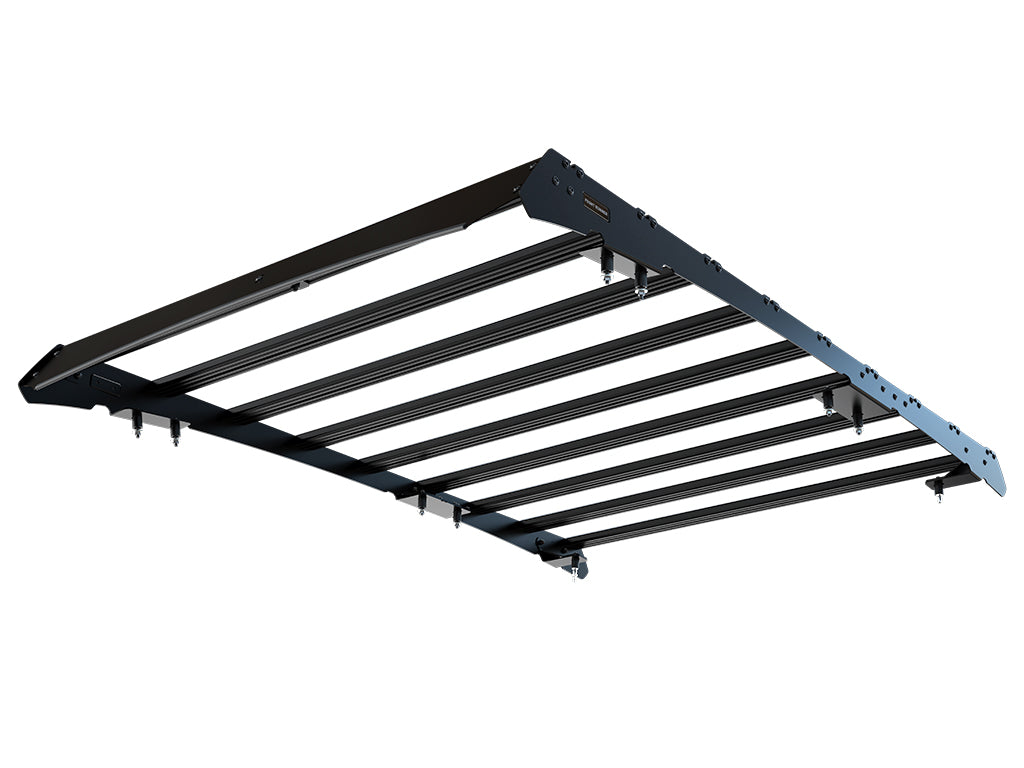

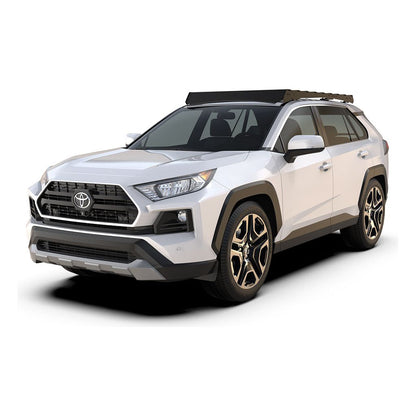

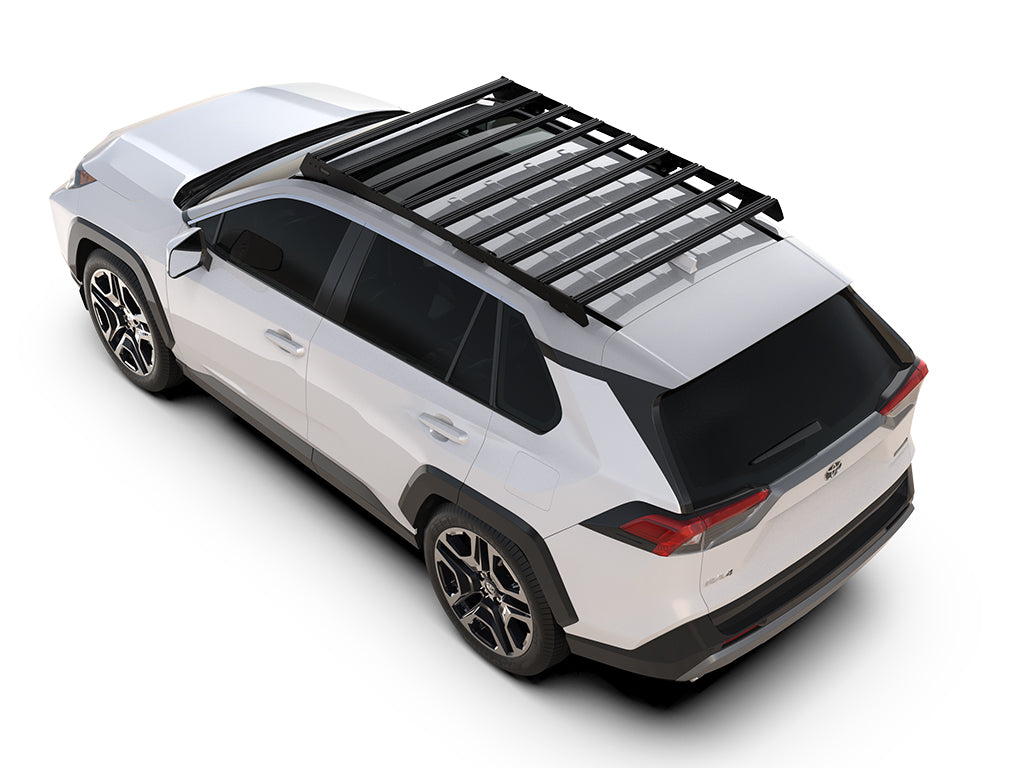

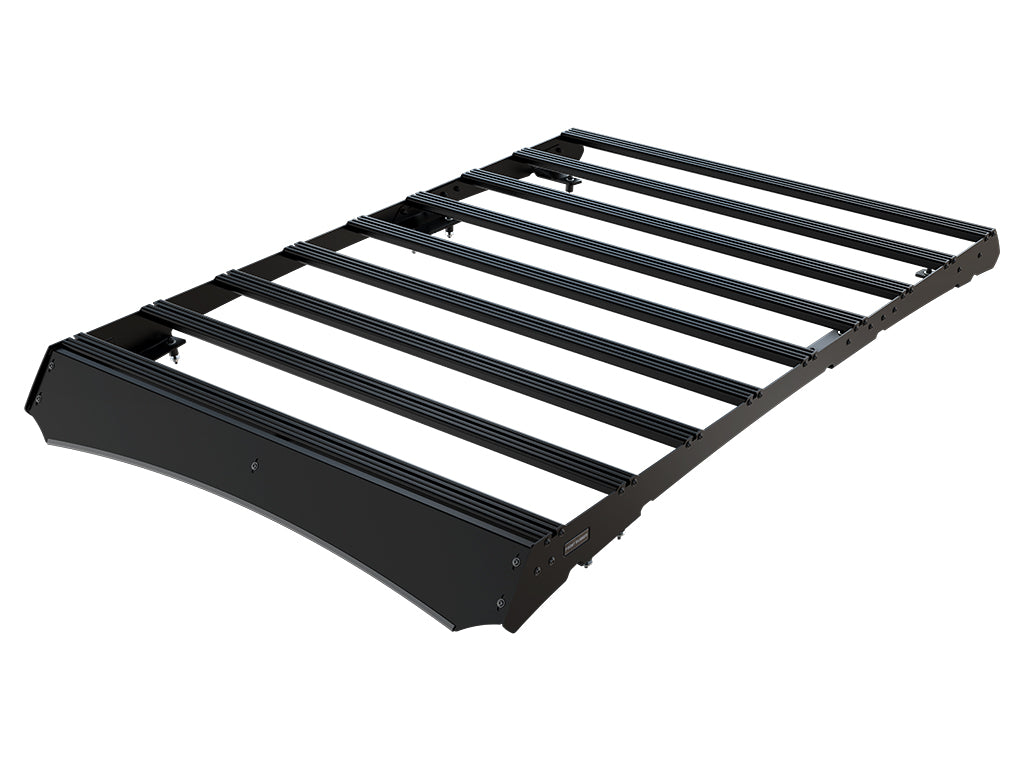

Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit

Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit

This low-profile flat deck Slimsport rack has a load-carrying area of 1676mm (66'') x 1175mm (46.3''). The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength. The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories. Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket RRAC190. Easily add on the RRAC182 for most Front Runner side mount accessories (sold separately). The included standard full fairing with rubber edge trim, makes the rack ultra-quiet. Need a lightbar? The optional lightbar fairing RRAC220 (sold separately) has a 40'' cutout to allow use of LIGH213BP (sold separately), and allows full operation of the moon roof. Fitment guide and all mounting hardware included. RRAC213 is required for installation. Note: Drilling required for installation. Note: Under Rack Tables and some side mount accessories such as JADA010 and RRAC103 are not compatible with the Slimsport rack kit range. All Front Runner Racks are backed by a Limited Lifetime Warranty* Note: Additional drilling is required for the RAV4 LE models.Note: The panoramic glass roof is not operational when this Rack Kit is installed. For panoramic glass roof the KRTR004T is suited, or KRTR005T for adventure model.

$949.00 USD
$949.00 USD
Sale Sold out
Shipping calculated at checkout.

All Front Runner Racks are backed by a Limited Lifetime Warranty

Specifications

Consisting of:
1 x Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit

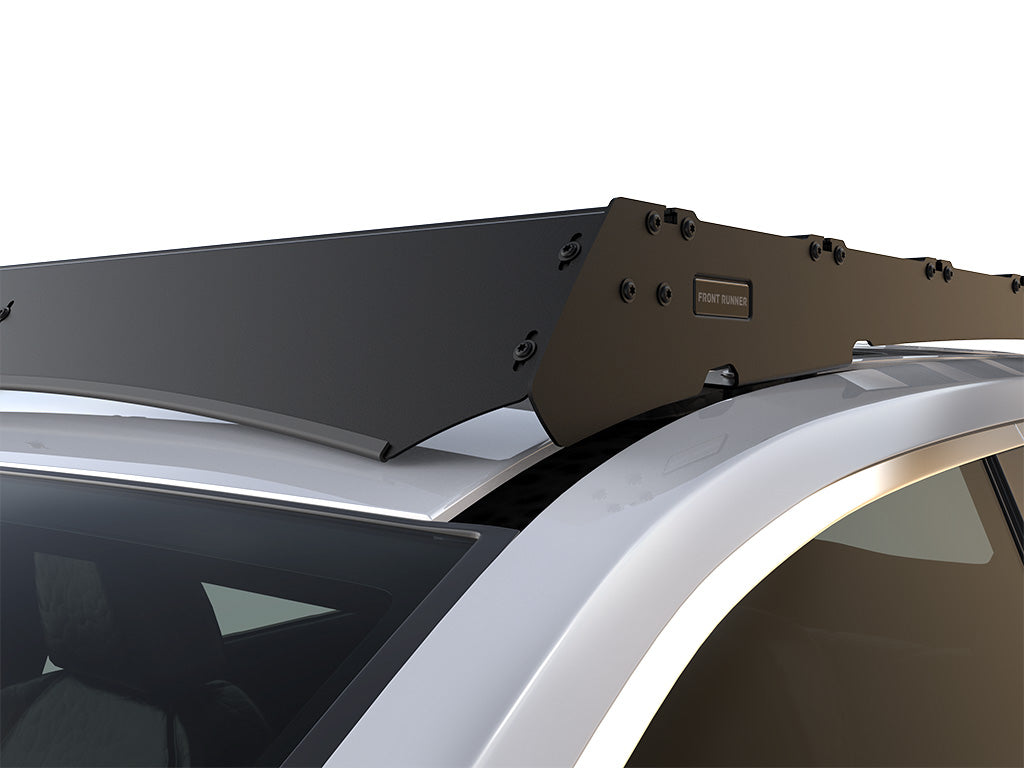

1 x RRAC238 - Toyota Rav4 (2019-Current) Slimsport Rack Wind Fairing
1 x RRAC971 - Protection strip
Installation Hardware
Fitting Instructions

Material Used: Black epoxy powder - coated T6 aluminium High strength steel

Assembled Rack Dimensions:
1676mm (66'') L x
1175mm (46.3'') W x
135mm (5.3'') H

Approximate Installed Weight: 34.74kg (76.59lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts. To determine the approximate height from your vehicle's roof to the top of your Slimsport Rack add 60mm-70mm (2.4''-2.8'') to the highest point of your roof.

Shipping Dimensions:
Width: 330mm (13'')
Length: 1705mm (67'')
Height: 220mm (9'')
Shipping Weight: 35kg (77lbs)

Details

This low-profile flat deck Slimsport rack has a load-carrying area of 1676mm (66'') x 1175mm (46.3''). The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
The high-strength aluminum slats have T-slots suitable for all Front Runner top mount accessories. Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket RRAC190.

Easily add on the RRAC182 for most Front Runner side mount accessories (sold separately). Included in the Toyota Rav4 (2019-Current) Slimsport is a 40'' cutout to allow the use of the LIGH213 (sold separately), and allows full operation of the moon roof.

Fitment guide and all mounting hardware included. RRAC213 is required for installation.

Note: Drilling required for installation.

Note: Under Rack Tables and some side mount accessories such as JADA010 and RRAC103 are not compatible with the Slimsport rack kit range.

Note: Additional drilling is required for the RAV4 LE models.

Note: The panoramic glass roof is not operational when this Rack Kit is installed. For panoramic glass roof the KRTR004T is suited, or KRTR005T for adventure model.

Fitting Instructions

https://content.frontrunneroutfitters.com/collateral/doc/F_KSTR001.pdf

https://content.frontrunneroutfitters.com/collateral/doc/F_RRAC238.pdf

https://content.frontrunneroutfitters.com/collateral/doc/F_RRAC971.pdf

*A PDF viewer is required to view the fitting instructions.

View full details
