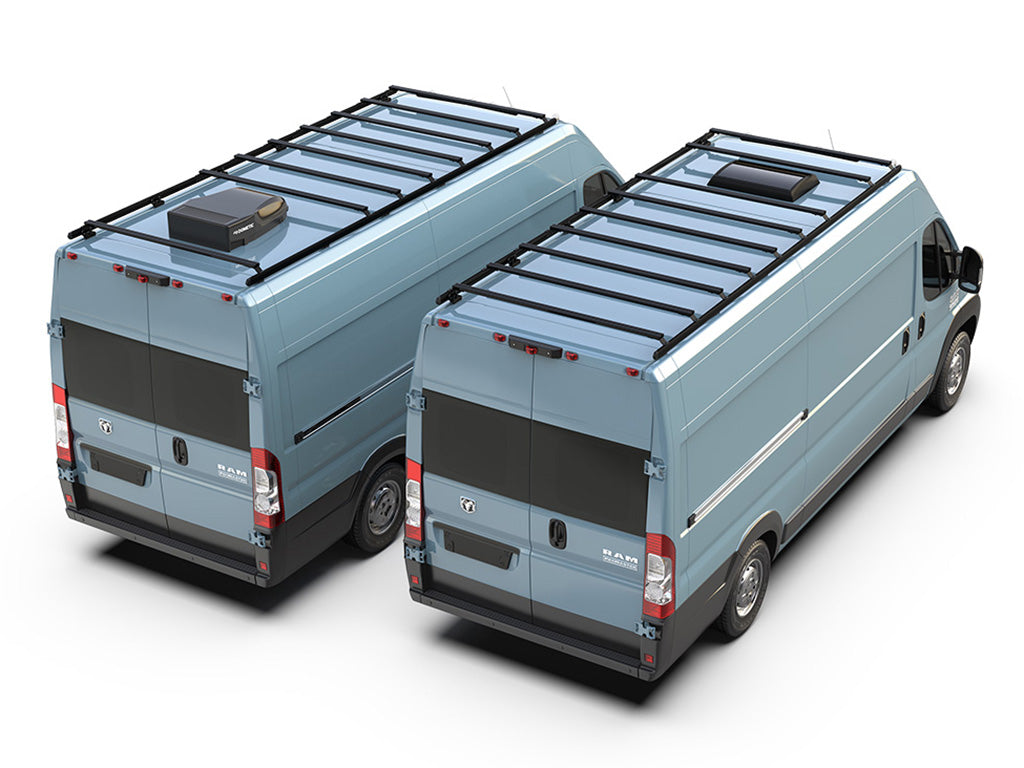

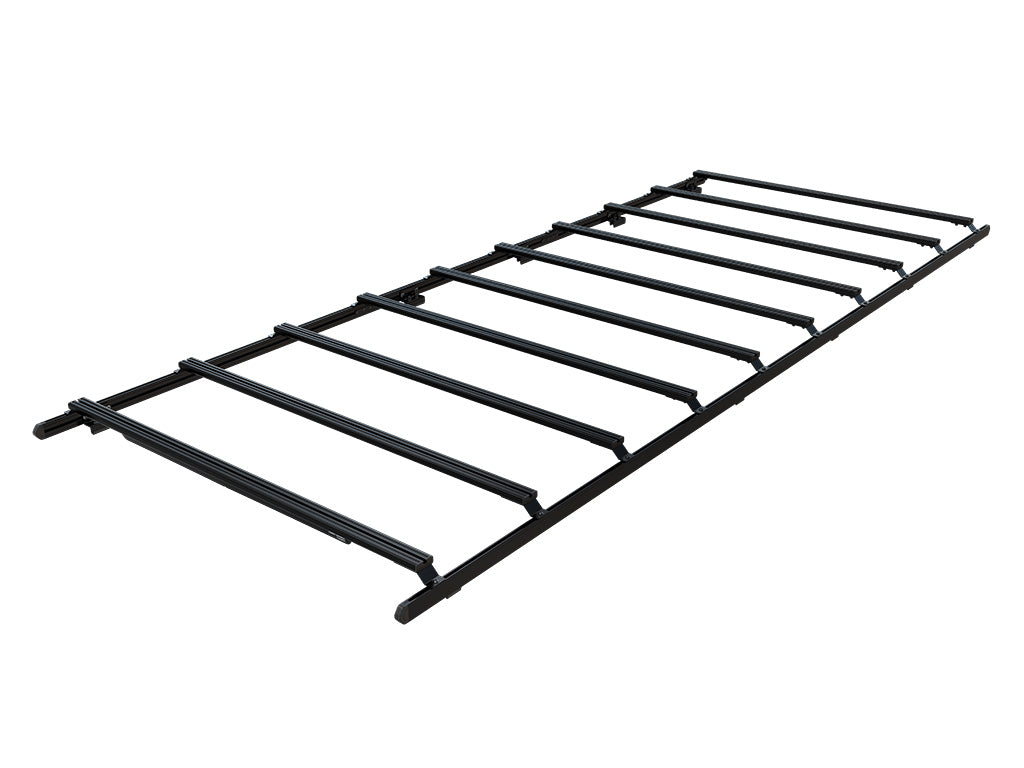

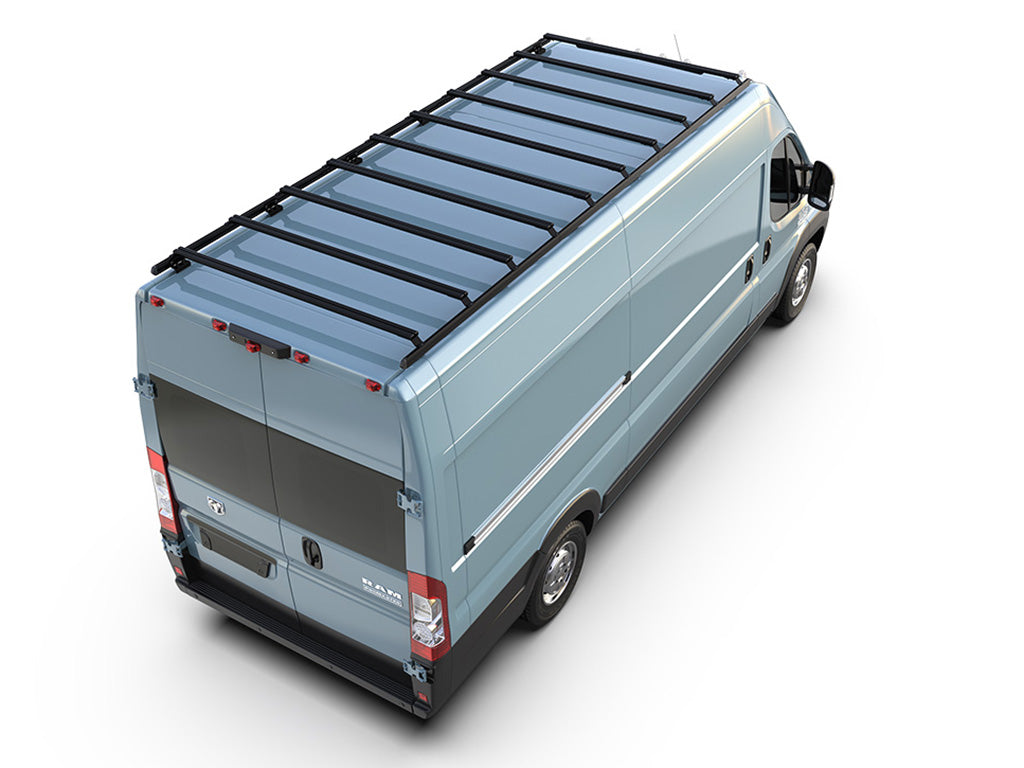

RAM Pro Master 3500 (159in WB/EXT High Roof) (2014-Current) Slimpro Roof Rack Kit

Consisting of:
5x FPCR Foot Set
2x Van Rack Joiner Kit
2x Van Rack Side Profile End Caps
5x Narrow Slat / 1475mm (Pair)
1x Van Rack Side Profile / 1156mm
2x Van Rack Side Profile / 1358mm
1x Wind Deflector Van Rack 30mm Lip

Material Used: Black epoxy powder - coated T6 aluminium High strength steel

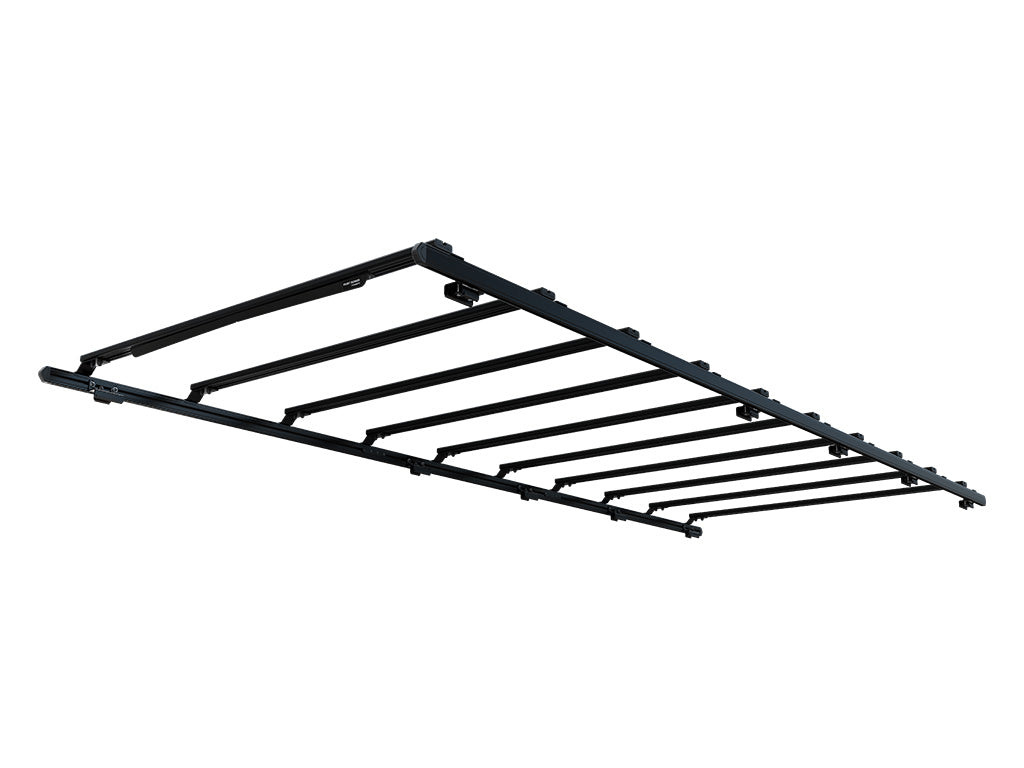

Assembled Rack Kit Dimensions:
3928mm (154.6'') L x
1565mm (61.6'') W x
127mm (5'') H
Approximate Installed Weight: 42.17kg (92.97lbs)

RAM Pro Master Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat. The slat T slots and side profiles take standard M8 hex bolts top and bottom.

Shipping Dimensions:
Width: 300mm (12'')
Length: 1805mm (71'')
Height: 195mm (8'')
Shipping Weight: 43.35kg (95lbs)

Compatible with RAM Pro Master 3500 (159" WB) (2014-Current) EXT High roof vans with a vehicle length of 6372mm / 250.9''.
Load-carrying area: 3928mm (154.6'') x 1565mm (61.6''). Ten (10) Mounting Feet secure into van's existing factory mounting points. Included Slat Bracket can be inverted for a lower profile at 85mm (3.4'') height, or left in standard configuration at 127mm (5'').
Compatible with most Front Runner accessories. Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories. Fitment guide and all mounting hardware are included.
No drilling or modification required.

https://content.frontrunneroutfitters.com/collateral/doc/F_KVRP009T.pdf

*A PDF viewer is required to view the fitting instructions.
