Land Rover Discovery LR3/LR4 Slimline II Roof Rack Kit

Consisting of:
1x FALD003 - Land Rover Discovery LR3 + LR4 Foot Rails
1x RRSTD11 - SLII Tray - 1255mm(W)X2166mm(L)

Materials Used: Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 39.97kg (88.12lbs)

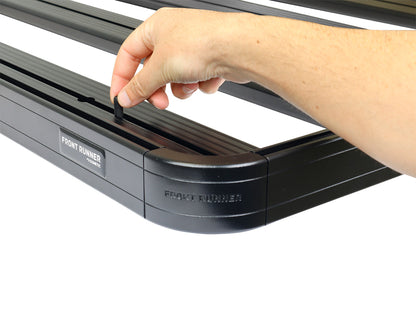

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 450mm (18")
Length: 1730mm (68")
Height: 140mm (6")
Shipping Weight: 41.63kg (92lbs)

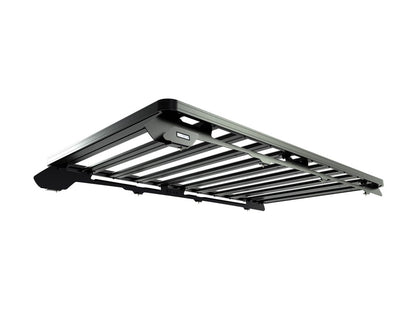

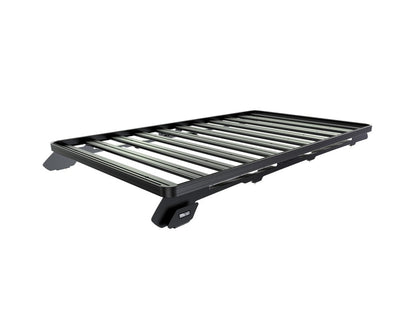

This 2166mm/85.3" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Land Rover Discovery LR3/LR4. It easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

If your vehicle has a DAB antenna, the tables can be inserted from either the right hand side or the left hand side of the roof rack to steer clear of the DAB antenna. If your vehicle does not have a DAB antenna, you may also orientate one table to mount from the rear of the roof rack.

**Please note. This Rack kit is not compatible with the Land Rover factory OEM Ladder. Consider purchasing the Front Runner Ladder for Land Rover Disco 3,4 / LR3, LR4 instead. (Part #LALD004).

These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller Pro Stainless Steel Prep Table Kit and 1 larger Pro Stainless Steel Camp Table Kit).

https://content.frontrunneroutfitters.com/collateral/doc/F_FALD003.pdf

https://content.frontrunneroutfitters.com/collateral/doc/F_RRSTUNI.pdf

*A PDF viewer is required to view the fitting instructions."
