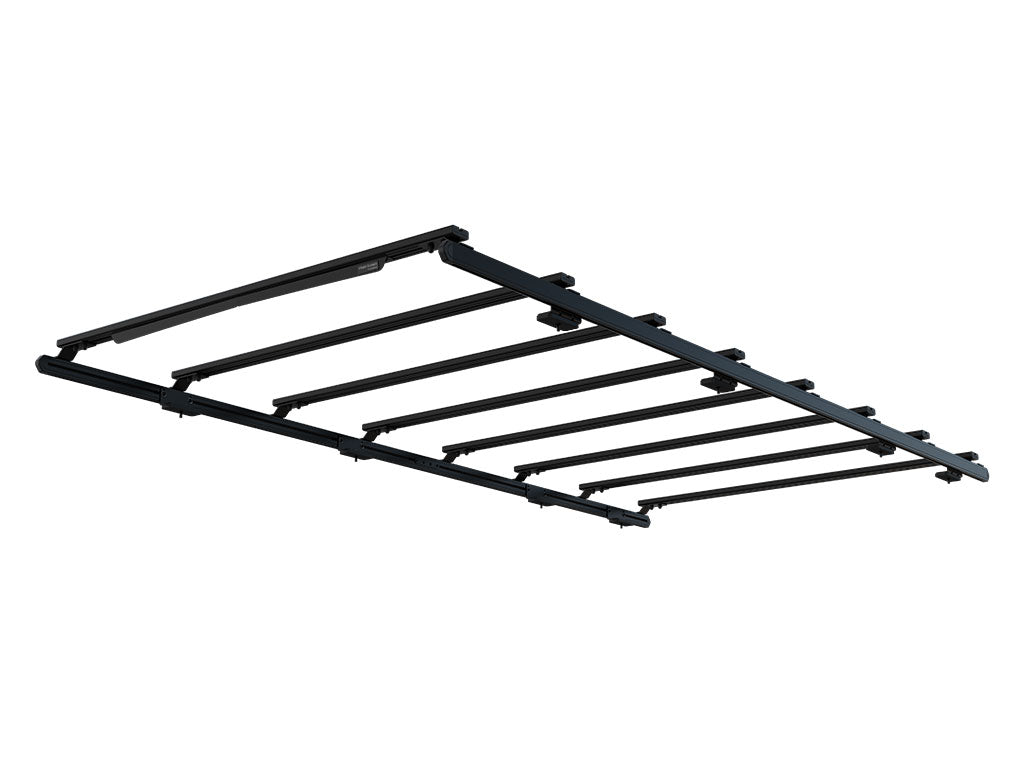

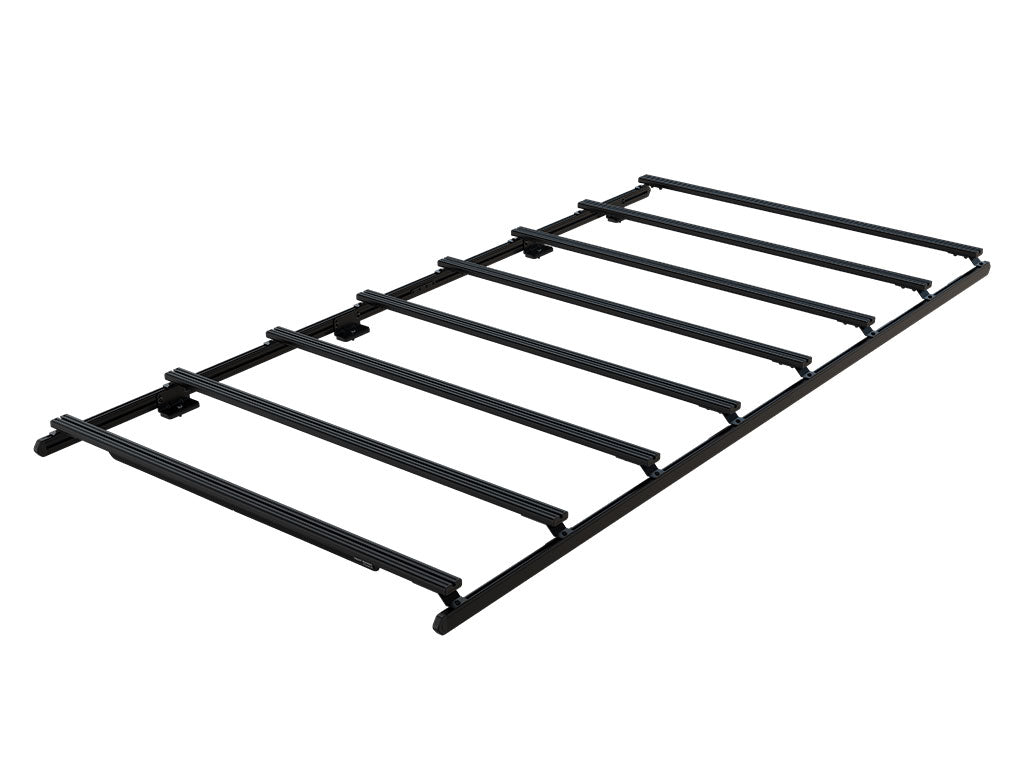

Ford Transit (L3H3/148in WB/High Roof) (2013-Current) Slimpro Roof Rack Kit

Consisting of:4x FAVF003 - Ford Transit Van Rack Foot Set1x RRAC207 - Van Rack Joiner Kit2x RRAC208 - Van Rack Side Profile End Caps4x RRNS1425 - Narrow Slat / 1425mm (Pair)1x SPVT002 - Van Rack Side Profile / 1358mm1x SPVT003 - Van Rack Side Profile / 1560mm1x WDST013 - Wind Deflector Van Rack 30mm Lip

Material Used: Black epoxy powder - coated T6 aluminium High strength steel Assembled Rack Kit Dimensions:2974mm (117.1'') L x 1470mm (57.9'') W x 123mm (4.8'') H

Approximate Installed Weight: 34.45kg (75.95lbs) Ford Transit Van Rack Kit heights are 125mm from the bottom of the roof ditch to the top of the slat. (Z brackets can not be inverted) all measurements are taken from bottom of roof ditch to top of the rack slat.

The slat T slots and side profiles take standard M8 hex bolts top and bottom.

Shipping Dimensions: Width: 300mm (12'')
Length: 1805mm (71'')
Height: 195mm (8'')
Shipping Weight: 37.35kg (82lbs)

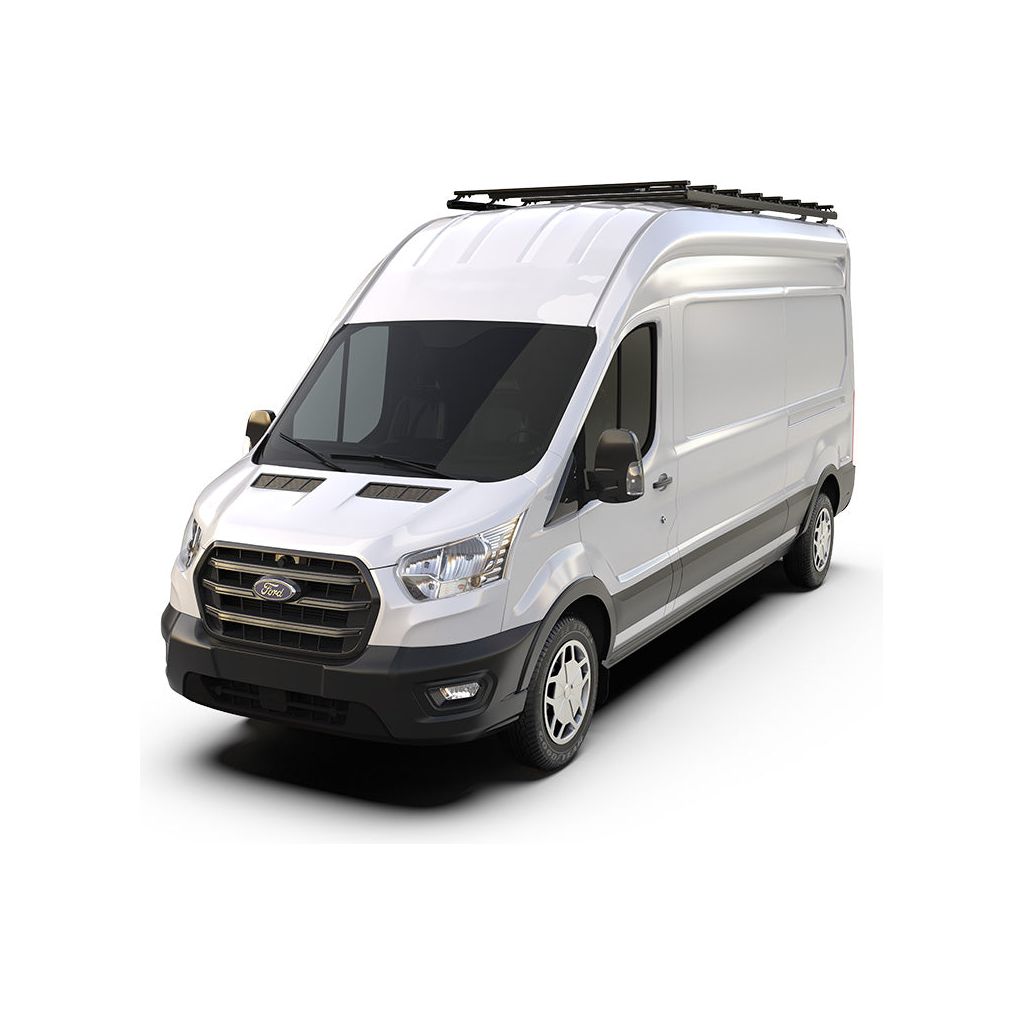

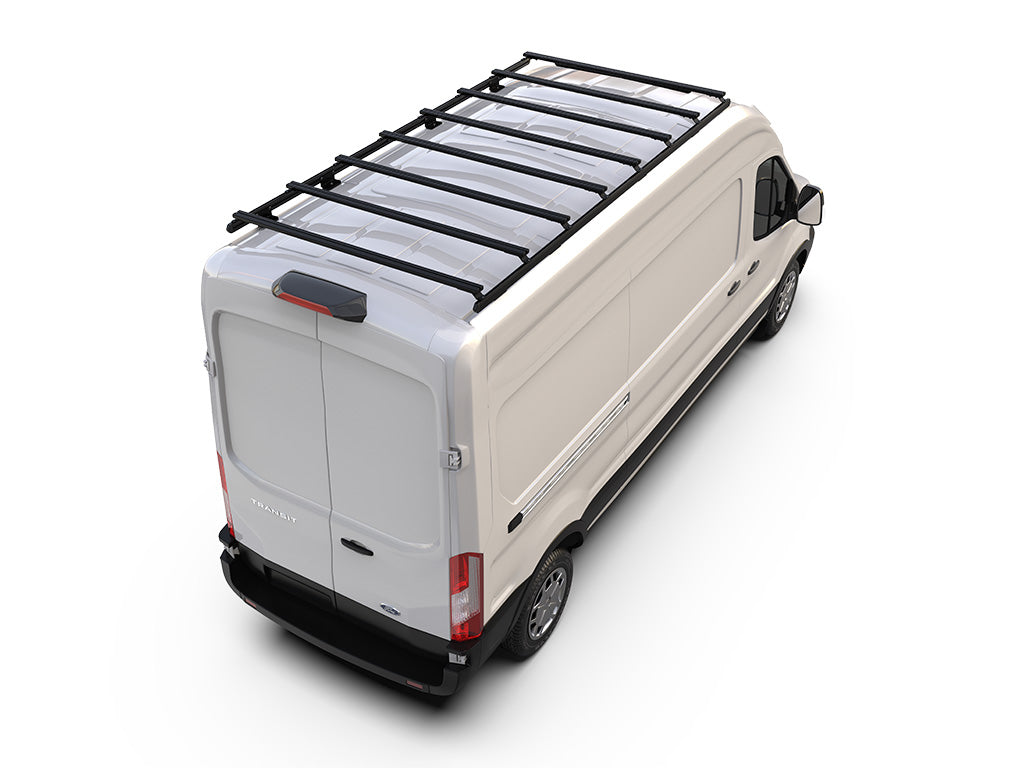

Compatible with Ford Transit (L3H3/148'' WB) (2013-Current) high roof vans with a vehicle length of 5981mm / 235.5''. Load-carrying area: 2974mm (117.1'') x 1470mm (57.9''). Eight (8) Mounting Feet secure into van's existing factory mounting points.

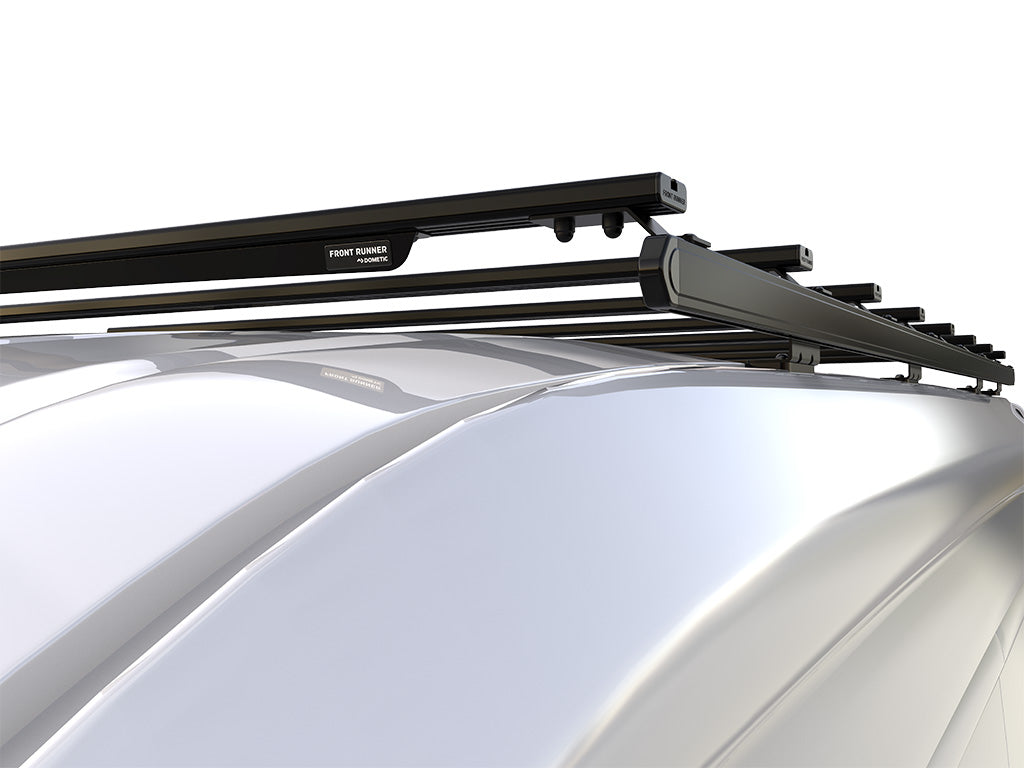

Compatible with most Front Runner accessories. Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.

Fitment guide and all mounting hardware are included. No drilling or modification required.

https://content.frontrunneroutfitters.com/collateral/doc/F_KVFT004T.pdf

*A PDF viewer is required to view the fitting instructions.
