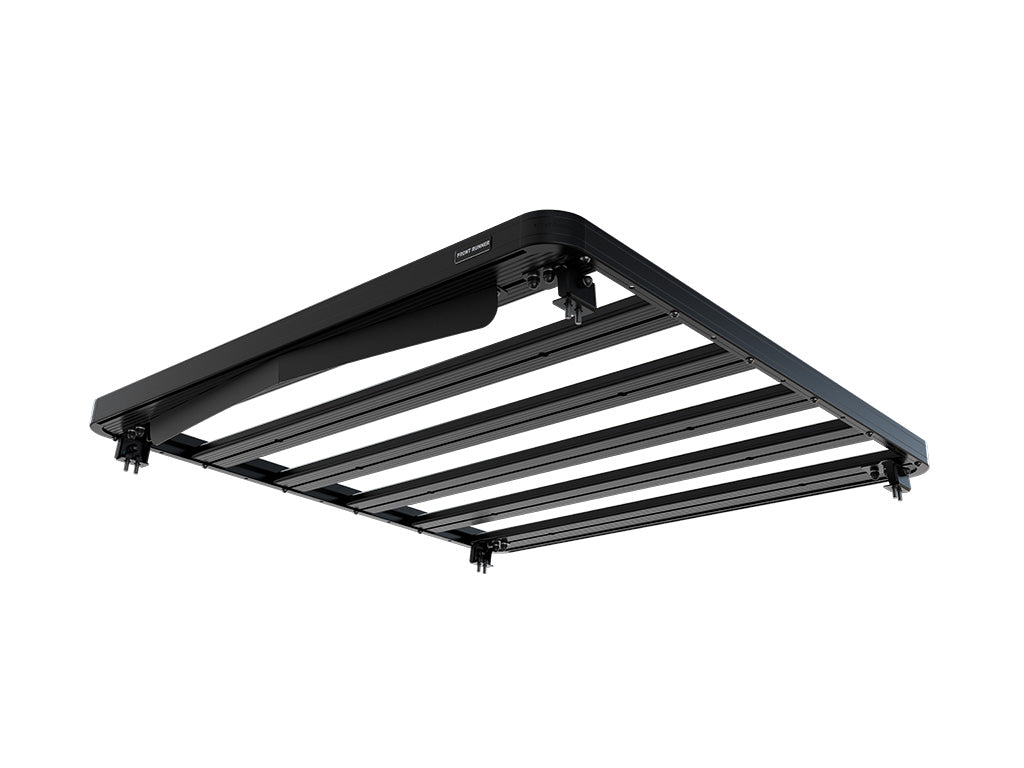

Subaru Outback (2015-2019) Slimline II Roof Rail Rack Kit

Consisting of:
1x Subaru Outback(2015-Curr) Foot Set
1x SLII Tray - 1165mm(W) X1156mm(L)
1x Wind Deflector 20mm Lip Extra Narrow Pair /1165mm

Material Used: Black epoxy powder - coated T6 aluminium High strength steel

Approximate Installed Weight: 20.36kg (44.89lbs)

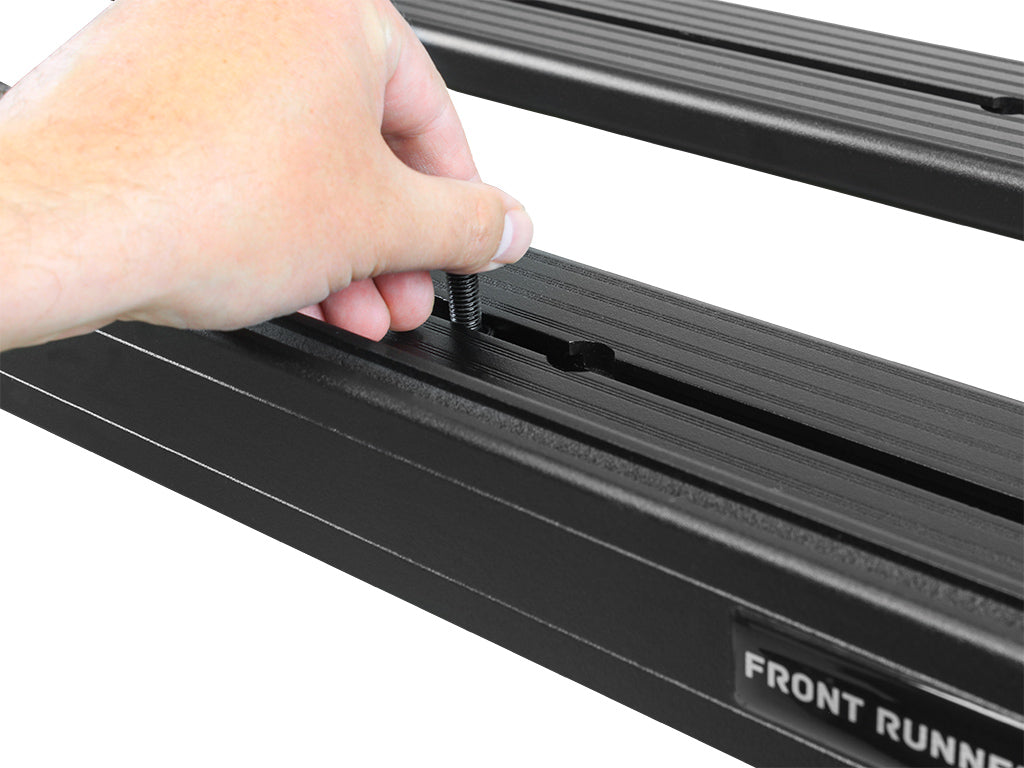

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 450mm (18'')
Length: 1610mm (63'')
Height: 200mm (8'')

Shipping Weight: 23.21kg (51lbs)

This 1156mm/45.5'' long, full-size, Slimline II cargo carrying roof rack kit for the Subaru Outback contains Slimline II Tray, Wind Deflector and 4 Feet. Installs easily to factory mounting points with no drilling required.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

This kit is compatible with the factory retractable cross bar roof rails with four anchor plates. It will not fit the low-profile rails found on the Touring model.

Note: Keep within vehicle roof load limits as specified by the manufacturer 68kg / 150 lbs.

Note: The sunroof is not operational when this Rack Kit is installed.

https://content.frontrunneroutfitters.com/collateral/doc/F_FASO001.pdf

https://content.frontrunneroutfitters.com/collateral/doc/F_RRSTUNI.pdf

*A PDF viewer is required to view the fitting instructions.
